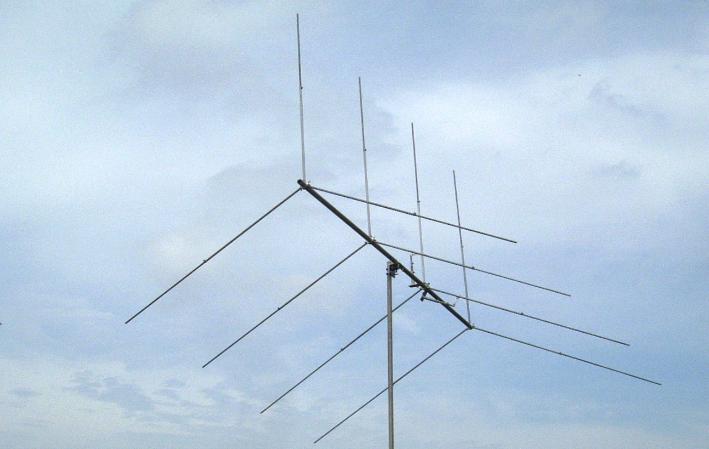

| Charles Gizmotchy™ Four Element Six Meter Beam Antenna Transmits and receives in a uni-directional pattern (one direction) Horizontal & Vertical Polarization Twin Feed Gamma matched, both horizontal and vertical, to 50 Ohms Kilowatt Power Handling Capacity All Aluminum Seamless Construction Boom Length: 9 feet Weight 10.5 lbs. SWR: 1:1 Charles Gizmotchy™ Power Booster The Charles Gizmotchy™ Power Booster consists of another set of director elements identical to those on the antenna plus an extension boom. Addition of the first Charles Gizmotchy™ Power Booster adds approximately 3 db to the forward gain of the Charles Gizmotchy™ antenna. One or more Charles Gizmotchy™ power boosters may be added to the Charles Gizmotchy™ antenna. Weight of each power booster is 3 lbs. Charles Universal Antenna Support Kit The Charles Universal Antenna Support Kit was designed for the Charles Gizmotchy™ antenna but it may be used to strengthen and support many types of antennas (both stacked and single). An extension for the support braces may be purchased for those who wish to run larger and longer antennas. We recommend purchasing the extension when running over six elements. |
| Another Great Addition To The Gizmotchy™ Family |
