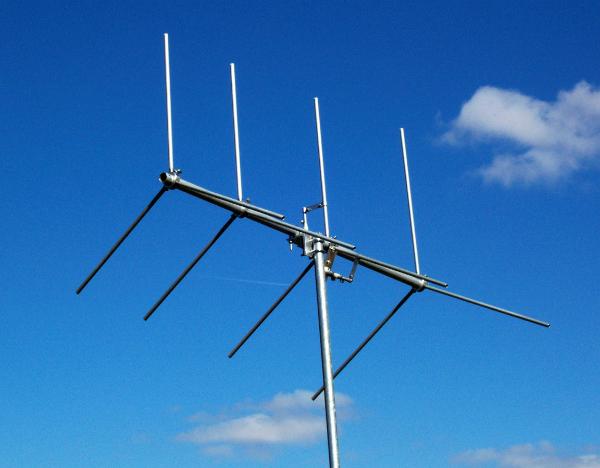

| The Newest Addition to the Gizmotchy™ Family Charles Gizmotchy™ Four Element Two Meter Beam Antenna |
Two Meter
Transmits and receives in a uni-directional pattern (one direction) Horizontal & Vertical Polarization Twin Feed Gamma matched, both horizontal and vertical, to 50 ohms Broadbanded Forward gain is approximately 10 db gain Kilowatt Power Handling Capacity All Aluminum Seamless Construction Boom Length 54 inches Weight: 5.5 lbs. Turning Radius: 32 Inches SWR: 1:1 |
| Charles Universal Antenna Support Kit The Charles Universal Antenna Support Kit was designed for the Charles Gizmotchy™ antenna but it may be used to strengthen and support many types of antennas (both stacked and single). An extension for the support braces may be purchased for those who wish to run larger and longer antennas. We recommend purchasing the extension when running booms over 16" long. |
| Larger two meter antennas are being tested. |
